DeWalt
12″ Double Bevel Sliding Compound Miter Saw DWS780

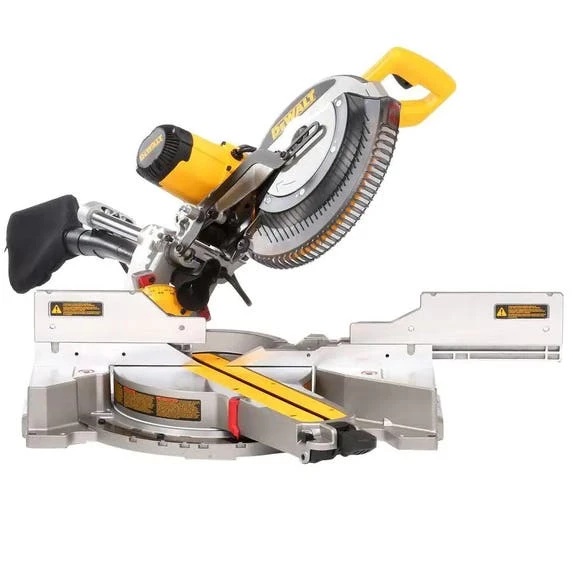

The DEWALT DWS780 15 Amp 12 in. Sliding Compound Miter Saw is driven by a powerful motor for advanced cutting power in a compact, lightweight design. With extended bevel and miter capacities, this compound miter saw powers through dimensional lumber and molding at angles up to 50ۜ degree left and 60 degree right for versatility. Tall sliding fences support crown molding up to 7-1/2 in. nested, base molding up to 6-1/2 in. vertically against the fence while easily sliding out of the way for bevel cuts. This 12 in. miter saw also features an adjustable stainless steel miter detent with 10 positive stops that helps improve productivity and cutting accuracy. The DWS780 Double Bevel Miter Saw includes a blade wrench, 12″ carbide blade, and material clamp.
FEATURES:
- Powerful 15 Amp, 3800 RPM motor delivers extended power.
- Fan-assisted chip ejection vacuums that chips off of the cutter head and exhausts them out of the thickness planer.
- Automatic carriage lock that reduces the movement that causes snipe.
- Back-fence design cuts up to 2 x 16 dimensional lumber at 90 Degrees and 2 x 12 lumber at 45 Degrees.
- Gearbox and belt-drive design increases vertical cutting capacity.
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings for accuracy and durability.

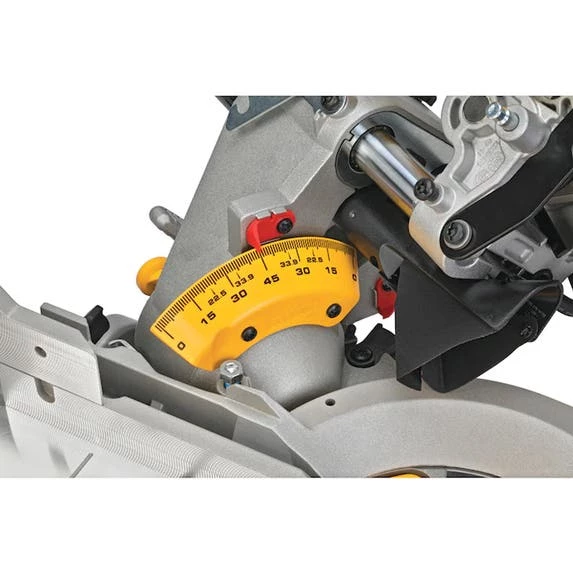

- Adjustable stainless-steel miter-detent plate with 10 positive stops improves productivity and helps ensure cutting accuracy.

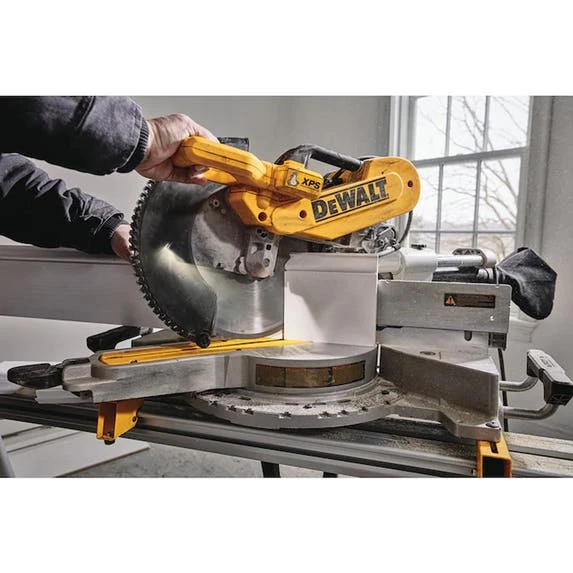

- Integrated XPS cross-cut positioning system provides adjustment-free cut-line indication for better accuracy and visibility.
- Efficient dust-collection system captures over 75% of dust generated.
- 6 ft. cord.
- 3-year limited warranty; 1-year free service contract.
- Dust bag and material clamp included.
SPECIFICATIONS:
| Blade Diameter (in.) | 12 |
| Product Height (in.) | 20 in |
| Product Depth (in.) | 32.77 in |
| Product Width (in.) | 19.05 in |
| Amperage (amps) | 15 Amp |
| Cuts Through | Nylon,PVC,Wood |
| Maximum Degree Miter Cuts – Left | 50 |
| Maximum Degree Miter Cuts – Right | 60 |
| Miter Saw Type | Sliding Compound |
| Arbor Size | .625 |
| Cordless/ Corded | Corded |
| Dust collection type | Port |
| Maximum Cutting Thickness (in.) | 6.75 |
| Product Weight (lb.) | 57 lb. |
INCLUDES:
(1) Miter saw
(1) 12 in. carbide blade
(1) Blade wrench
(1) Vertical material clamp
(1) Dust bag
