DeWalt Power Tools DeWalt 20V Max 30° Cordless Paper Collated Framing Nailer Kit DCN692M1

DeWalt

20V Max 30° Cordless Paper Collated Framing Nailer Kit DCN692M1

The 20V MAX* Cordless 30° Paper Collated Framing Nailer drives nails from 2 to 3-1/2″. With long runtime and powerful versatility; this nailer is built to handle tough jobsite duty. Its compact shape; well-balanced design; and easy-to-operate features make it an efficient; highly productive tool in your team’s hands.

FEATURES:

• Dual-speed motor optimzed to drive a wide range of fasteners for a variety of applications.
• Tool-free depth adjustment for precise nail placement.
• Adjustable rafter hook.
• Dry fire lock out prevents tool from firing when nails are low.
• Capable of driving 3-1/2 in. fasteners into dense lumber.
• Tool-free selector switch for sequential or bump fire modes.
• Stall release lever to reset driver blade in the event of a jam.
• Easy access to the nosepiece for removal of jammed nails.
• 33° magazine holds up to 55 paper collated nails.
• 3 Year Limited Warranty.

SPECIFICATIONS:

Belt / Rafter Hook	Yes
Fastener Diameter Range	.113″ – .131″
Firing / Acutation Mode	Bump & Sequential
Magazine Capacity	55.0 Nails
System	20V Max
Tool Length	13.25″
Dry Fire Lockout	Yes
Fastener Length	2″ to 3-1/2″
Magazine Angle	30°
Magazine Loading	Rear Load
Tool Height	13.5″

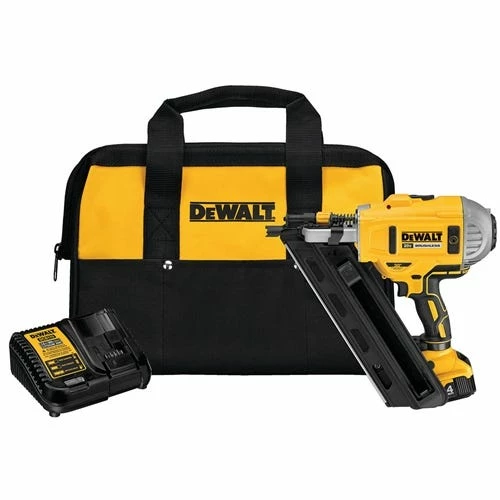

INCLUDES:

• (1) Framing Nailer (DCN692)
• (1) No-Mar Tip
• (1) Manual
• (1) Kit Bag
• (1) Charger (DCB115)
• (1) 20V MAX* Battery (DCB204)

“
