DeWalt Power Tools DeWalt 60V Max 1-3/4″ SDS-MAX Brushless Combination Rotary Hammer (Tool Only) DCH614B

DeWalt

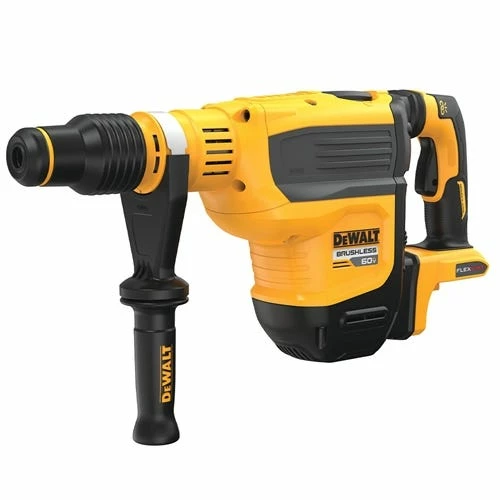

60V Max 1-3/4 SDS-MAX Brushless Cordless Combination Rotary Hammer (Tool Only) DCH614B

The 60V MAX* 1-3/4″ SDS Max Brushless Combination Hammer is a midweight; high-performance rotary hammer that is powered by a brushless motor and durable German engineered mechanisms. The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles; compared to rotary hammers without this feature.

FEATURES:

• 10.5 Joules of impact energy for fast drilling and chipping; even in the hardest concrete.
• Equipped with integrated WIRELESS TOOL CONTROL; which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation.
• 7-position; variable-speed control for precision hole placement; chipping; and drilling with Atomic Undercut bits.
• Constant-speed electronics allow the tool to maintain speed under load.
• The midweight design makes it ideally suited for high-performance; horizontal serial drilling for #5 – #8 rebar; dry coring up to 4″.; chipping in any upper to lower wall and bushing applications.
• E-CLUTCH system protects the user in bind-up situations by stopping the rotation of the bit.
• The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles; compared to rotary hammers without this feature.
• Brushless motor and durable German engineered mechanisms.
• Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the Tool Connect app.
• 3 Year Limited Warranty.

SPECIFICATIONS:

Blows/Min	1450- 2900 BPM
Impact Energy	10.5 Joules
No Load Speed	190 – 380 RPM
System	60V MAX*
E-Clutch (TM)	E-Clutch
Max. Diameter Core	4″
Optimal Concrete Drilling	5/8″ – 1-1/4″
Tool Length	20.7″
Vibration Control	Shocks

INCLUDES:

• (1) 60V MAX* Combination Rotary Hammer (DCH614)
• (1) Atomic Undercut Bit Drilling

“
